Hypoid
MFKA SERIES (3-STAGE)
- High torque right-angled hypoid gearbox
- Output shaft with or without key, spline (DIN 5480) or with hollow shaft
- Ratio 100 to 1000
- Special design for continuous (S1) or cyclic (S5) duty operation
- Stainless steel housing, aluminum black anodized motor adapter flange
- Stainless steel output shaft with or without key, or with spline (DIN5480)
- Helical gear design
- Nominal torques:
- T2N : 1,770 Nm - 4,270 Nm
- Ratios
- 3-stage : 100 / 125 / 140 / 175 / 200 / 250 / 350 / 500 / 700 / 1,000
- Low backlash
- 3-stage : ≤ 4 arcmin
- High efficiency
- 3-stage : ≥ 92%
- Easy mount
- Low noise
- Compact structure
- Sizes available: MFKA240
| Model No. | Stage | Ratio¹ | MFKA240 | |
| Nominal Output Torque T2N | Nm | 3 | 100 | 3,800 |
| 125 | 3,900 | |||
| 140 | 3,910 | |||
| 175 | 3,930 | |||
| 200 | 3,945 | |||
| 250 | 3,970 | |||
| 350 | 4,000 | |||
| 500 | 4,035 | |||
| 700 | 3,090 | |||
| 1,000 | 1,770 | |||
| Emergency Stop Torque T2Not | Nm | 3 | 100~1,000 | 2 times T2N |
| Max. Acceleration Torque T2b | Nm | 3 | 100~1,000 | 1.5 times T2N |
| No Load Running Torque(2) | NM | 3 | 100~1,000 | 6 |
| Backlash(3) | arcmin | 3 | 100~1,000 | ≤ 4 |
| Torsional Rigidity | Nm/arcmin | 3 | 100~1,000 | 510 |
| Nominal Input Speed n1N | rpm | 3 | 100~1,000 | 2,100 |
| Max. Input Speed | rpm | 3 | 100~1,000 | 4,000 |
| Max. Radial Load F2r(4) | N | 3 | 100~1,000 | 30,000 |
| Max. Axial Load F2a(4) | N | 3 | 100~1,000 | 15,000 |
| Max. Tilting Moment M2k(4) | Nm | 3 | 100~1,000 | 5,420 |
| Operating Temp. | °C | 3 | 100~1,000 | -10º C ~ 90º C |
| Degree of Gearbox Protection | 3 | 100~1,000 | IP65 | |
| Lubrication | 3 | 100~1,000 | Synthetic lubrication grease | |
| Mounting Position | 3 | 100~1,000 | All directions | |
| Running Noise (5) | dB(A) | 3 | 100~1,000 | ≤ 72 |
| Efficiency | % | 3 | 100~1,000 | ≥ 92% |
(1) Ratio ( i = N in / N out )
(2) These values are measured by gearbox with ratio 1,000 (3-stage) at 3,000 rpm no loading.
(3) Backlash is measured at 2% of Nominal Output Torque T2N
(4) Applied to the output shaft center at 100 rpm.
(5) These values are measured by gearbox with ratio 1,000 (3-stage) at 3,000 rpm no loading.
By lower ratio and/or higher RPM, the noise level could be 3 to 5 dB higher.
| Model No. | MFKA240 | |
| (C3) Ø (1) | ||
| 32 | kg.cm2 | 8.11 |
| 35 | 15.32 | |
| 38 | 17.72 | |
| 42 | 22.95 | |
| 48 | 52.74 | |
(1) Ø = Input shaft diameter.

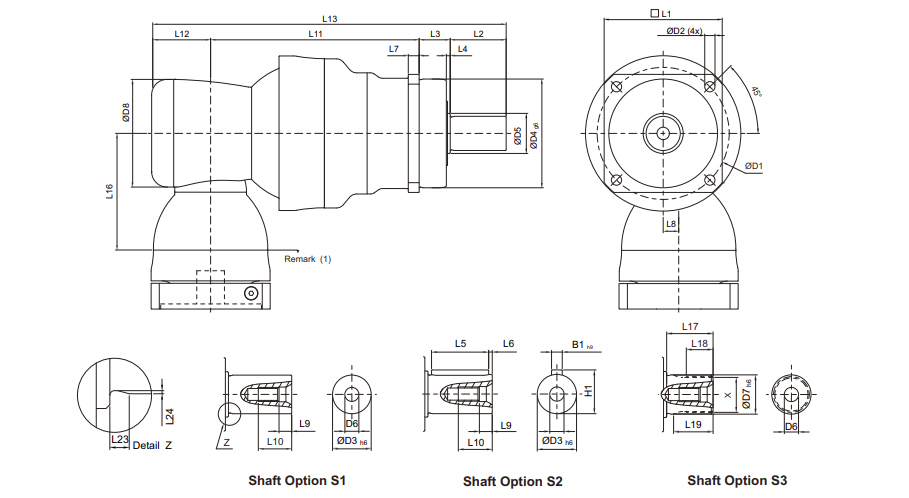

| MFKA240 | |
| D1 | 290 |
| D2 | 17 |
| D3 h6 | 85 |
| D4 g6 | 200 |
| D5 | 92.2 |
| D6 | M20 x 2.5P |
| D7 h6 | 85 |
| D8 H6 | 210 |
| L1 | 245 |
| L2 | 130 |
| L3 | 40 |
| L4 | 3 |
| L5 | 125 |
| L6 | 3 |
| L7 | 22 |
| L8 | 31 |
| L9 | 15 |
| L10 | 42 |
| L11 | 378 |
| L12 | 115 |
| L13 | 663 |
| L16 | 228 |
| L17 | 60 |
| L18 | 36 |
| L19 | 53 |
| L23 | 4 |
| L24 | 0.5 |
| B1 h9 | 22 |
| H1 | 90 |
| X DIN5480 | W80 x 2 x 30 x38 x 6m |
(1) Dimensions are related to motor interface. Please contact APEX for details
