In line planetary

ADS series

  • Stainless housing and shaft
  • Output flange ISO 9409
  • Ratio 4 to 91
  • Torque 14 Nm – 2000 Nm
ADS series
  • Special design for continuous (S1) or cyclic (S5) duty operation
  • Stainles steel housing, aluminum black anodized motor adapter flange
  • Stainless steel input and output shaft, flange ISO 9409
  • Helical gear technology
  • Nominal Torques:
    • T2N : 14 Nm - 2000 Nm
  • Ratios
    • 1-stage : 4 / 5 / 7 / 10
    • 2-stage: 16 / 21 / 31 / 61 / 91
  • Low Backlash
    • 1-stage : ≤ 1 arcmin / ≤ 3 arcmin / ≤ 5 arcmin
    • 2-stage : ≤ 3 arcmin / ≤ 5 arcmin / ≤ 7 arcmin
  • High Efficiency
    • 1-stage : ≥ 97%
    • 2-stage : ≥ 94%
  • Easy mount
  • Low noise
  • Compact structure
  • Size available: ADS047 / ADS064 / ADS090 / ADS110 / ADS140 / ADS200 / ADS255

Model No.

Stage Ratio1 ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255
Nominal Output Torque T2N Nm 1 4 19 48 130 270 560 1,100 1,700
5 22 60 160 330 650 1,200 2,000
7 19 50 140 300 550 1,100 1,800
10 14 40 100 230 450 900 1,500
2 16 19 48 130 270 560 1,100 1,700
21 22 60 160 330 650 1,200 2,000
31 19 50 140 300 550 1,100 1,800
61 19 50 140 300 550 1,100 1,800
91 14 40 100 230 450 900 1,500
Emergency Stop Torque T2NOT (2) Nm 1,2 4~91 3 times of nominal output torque T2N
Nominal Input Speed N1N rpm 1,2 4~91 5,000 5,000 4,000 4,000 3,000 3,000 2,000
Max. Input Speed N1B rpm 1,2 4~91 10,000 10,000 8,000 7,500 4,500 4,500 3,800
Micro Backlash P0 arcmin 1 4~10 - - ≤ 1 ≤ 1 ≤ 1 ≤ 1 ≤ 1
2 16~91 - - - ≤ 3 ≤ 3 ≤ 3 ≤ 3
Reduced Backlash P1 arcmin 1 4~10 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3
2 16~91 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5
Standard Backlash P2 arcmin 1 4~10 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5
2 16~91 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7
Torsional Rigidity Nm/
arcmin
1,2 4~91 3 7 14 25 50 145 225
Max. Tilting moment M2k Nm 1,2 4~91 55 75 190 300 1,300 2,930 5,500
Max. axial load N 1,2 4~91 990 1,050 2,850 2,990 10,590 16,660 29,430
Input Max. Radial Load F1rB(3) N 1 4~10 165 395 1,300 1,525 2,800 4,500 12,500
2 16~91 165 165 395 1,300 1,525 2,800 4,500
Input Max. Axial Load  F1aB(3) N 1 4~10 580 1,000 1,100 980 2,700 4,700 8,000
2 16~91 580 580 1,000 1,100 980 2,700 4,700
Efficiency % 1 4~10 ≥ 97 %
2 16~91 ≥ 94 %
Weight kg 1 4~10 0.8 1.4 3.4 6.7 13.5 35.0 63.8
2 16~91 1.1 1.6 4.0 7.3 16.6 36.4 74.7
Operating Temperature ºC 1,2 4~91 -10ºC ~+ 90ºC
Lubrication 1,2 4~91 synthetic gear grease
Degree of Gearbox Protection 1,2 4~91 IP65
Mounting Position 1,2 4~91 all directions
Noise Level (4) dB(A) 1,2 4~91 ≤ 56 ≤ 58 ≤ 60 ≤ 63 ≤ 65 ≤ 67 ≤ 70
  1. Ratio ( i = N in / N out )
  2. Applied to the output flange center at 100 rpm
  3. Maximum acceleration torque T2B = 60% van T2NOT
  4. These values are measured by gearbox with ratio 10 (1-stage) or ratio 100 (2-stage) at 3,000 rpm no loading.
    By lower ratio and/or higher RPM, the noise level could be 3 to 5 dB higher.

Maximum tilting moment:

AB Tilting Moment







Max Tilting Moment









Size ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 AB255
Z2 (mm) 37.9 46.2 63.1 75.5 92.2 119.2 148.8

Applied to the output flange center at 100 rpm

Maximum radial and axial loads:

AB axial load as















The maximum radial and axial loads on the input shaft of the gearbox depends on the design of the gearbox supporting bearings.
Apex Dynamics uses the extension straddle oversized ball bearing design. This can take heavy load from both axles

ADS position load grafiek

ADS grafiek legenda





















Permitted radial load F2r on center of output shaft X = ½ x L for various output speeds.



ADS radial load grafiek

ADS grafiek legenda





















If radial force F2r is not exerted on the center of the ouput shaft X < ½ x L or X > ½ x L, the permitted radial and axial loads can be calculated by the position load factor Kb on the above diagram.

Model No.

Stage Ratio1 ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255
Mass Moment of inertia J1 kg*cm 1
4 0.06 0.21 0.87 3.65 10.27 43.05 102.68
5 0.06 0.21 0.83 3.53 10.17 41.76 99.12
7 0.06 0.21 0.82 3.47 9.99 41.15 97.41
10 0.06 0.21 0.81 3.45 9.93 40.97 97.03
2
16 0.06 0.06 0.21 0.83 3.53 10.17 41.76
21 0.06 0.06 0.21 0.83 3.53 10.17 41.76
31 0.06 0.06 0.21 0.83 3.53 10.17 41.76
61 0.06 0.06 0.21 0.81 3.45 9.93 40.97
91 0.06 0.06 0.21 0.81 3.45 9.93 40.97

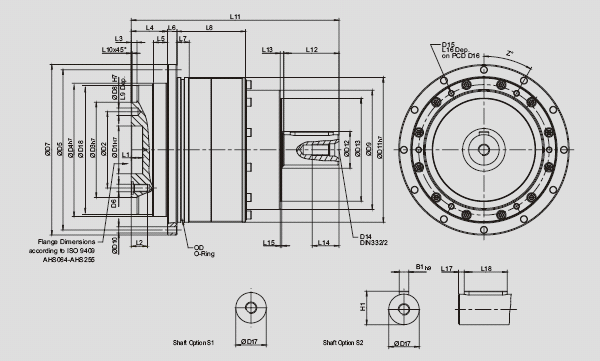

ADS series 1-stage, ratio i= 4~10

ads-afmetingen-1-traps

ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255
D1 H7 12 20 31.5 40 50 80 100
D2 20 31.5 50 63 80 125 140
D3 h7 28 40 63 80 100 160 180
D4 h7 47 64 90 110 140 200 255
D5 67 79 109 135 168 233 280
D6 4 X M3 X 0.5P 7 X M5 X 0.8P 7 X M6 X 1P 11 X M6 X 1P 11 X M8 X 1.25P 11 X M10 X 1.5P 12 X M16 X 2P
D7 72 86 118 145 179 247 300
D8 H7 3 5 6 6 8 10 12
D9 43 55 78 100 125 175 210
D10 8 X 3.4 8 X 4.5 8 X 5.5 8 X 5.5 12 X 6.6 12 X 9 16 X 13.5
D11 h7 60 70 95 120 152 212 255
D12 31 22 22 30 40 75 95
D13 37 50 62 82 108 145 172
D14 M4 x 0.7P M4 x 0.7P M5 x 0.8P M8 x 1.25P M12 x 1.75P M16 x 2P M20 x 2.5P
D15 M3 x 0.5P M3 x 0.5P M4 x 0.7P M5 x 0.8P M6 x 1P M8 x 1.25P M8 x 1.25P
D16 51.5 61.5 84 107 137 193 235
D1 7k6 11 14 16 22 32 40 55
D18 46.2 63.2 89.2 109.2 139.2 199.2 254.2
L1 4 8 12 12 12 16 20
L2 6.5 8 13.5 13.5 17 22.5 30.5
L3 3 3 6 6 6 8 12
L4 19.5 19.5 30 29 38 50 66
L5 7 7 10 10 14.6 15 20
L6 4 4 7 8 10 12 18
L7 5 7.7 8 10 12 15 20
L8 32.5 43.5 47 62 72 89.5 112
L9 4 6 7 7 7 10 10
L10 0.5 0.5 1 1 1 1 1
L11 89.5 110.5 138.5 170 218 296 372.5
L12 18 22 28 36 58 82 115
L13 2.5 2.5 3.5 3.5 3.5 4.5 4.5
L14 10 10 12.5 19 28 36 42
L15 1.5 1.5 1.5 1.5 1.5 1.5 1.5
L16 5.5 5.5 7 9 11 14 14
L17 2 2 3 3 6 6 7
L18 14 18 22 28 45 70 90
B1 h9 4 5 5 6 10 12 16
H1 12.5 16 18 24.5 35 43 59
OD 56 X 2 66 X 2 90 X 3 110 X 3 145 X 3 200 X 5 238 X 5
V 4 4 4 4 6 6 6
Z 45 45 45 45 30 30 30

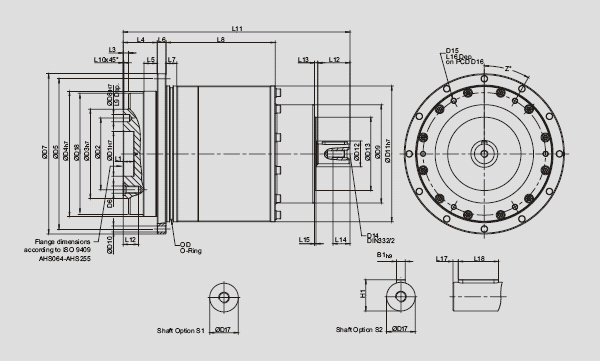

ADS series 2-stage, ratio i= 16~91

ads-afmetingen-2-traps-2

ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255
D1 H7 12 20 31.5 40 50 80 100
D2 20 31.5 50 63 80 125 140
D3 h7 28 40 63 80 100 160 180
D4 h7 47 64 90 110 140 200 255
D5 67 79 109 135 168 233 280
D6 4 X M3 X 0.5P 7 X M5 X 0.8P 7 X M6 X 1P 11 X M6 X 1P 11 X M8 X 1.25P 11 X M10 X 1.5P 12 X M16 X 2P
D7 72 86 118 145 179 247 300
D8 H7 3 5 6 6 8 10 12
D9 43 48 68 86 110 132 182
D10 8 X 3.4 8 X 4.5 8 X 5.5 8 X 5.5 12 X 6.6 12 X 9 16 X 13.5
D11 h7 60 70 95 120 152 212 255
D12 22 22 22 22 30 40 75
D13 37 37 50 62 82 108 145
D14 M4 x 0.7P M4 x 0.7P M4 x 0.7P M5 x 0.8P M8 x 1.25P M12 x 1.75P M16 x 2P
D15 M3 x 0.5P M3 x 0.5P M4 x 0.7P M5 x 0.8P M6 x 1P M8 x 1.25P M10 x 1.5P
D16 51.5 61.5 84 107 137 193 235
D17 k6 11 11 14 16 22 32 40
D18 46.2 63.2 89.2 109.2 139.2 199.12 254.2
L1 4 8 12 12 12 16 20
L2 6.5 8 13.5 13.5 17 22.5 30.5
L3 3 3 6 6 6 8 12
L4 19.5 19.5 30 29 38 50 66
L5 7 7 10 10 14.6 15 20
L6 4 4 7 8 10 12 18
L7 5 7.7 8 10 12 15 20
L8 62.5 63.5 67 82 122 79.5 177
L9 4 6 7 7 7 10 10
L10 0.5 0.5 1 1 1 1 1
L11 119.5 125.5 158.5 188 253.5 314.5 419.5
L12 18 18 22 28 36 58 82
L13 2.5 2.5 2.5 3.5 3.5 3.5 4.5
L14 10 10 10 12.5 19 28 36
L15 1.5 1.5 1.5 1.5 1.5 1.5 1.5
L16 5.5 5.5 7 9 11 14 18
L17 2 2 2 3 3 6 6
L18 14 14 18 22 28 45 70
B1 h9 4 4 5 5 6 10 12
H1 12.5 12.5 16 18 24.5 35 43
OD 56 X 2 66 X 2 90 X 3 110 X 3 145 X 3 200 X 5 238 X 5
V 4 4 4 4 6 6 6
Z 45 45 45 45 30 30 30



Dimensions Output Flange( ISO 9409 )
ADS series

adadrads-afmetingen-flens

Dimension ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255
D1 H7 12 20 31.5 40 50 80 100
D2 20 31.5 50 63 80 125 140
D3 h7 28 40 63 80 100 160 180
D4 h7 47 64 90 110 140 200 255
D5 67 79 109 135 168 233 280
D6 M3 x 0.5P M5 x 0.8P M6 x 1P M6 x 1P M8 x 1.25P M10 x 1.5P M16 x 2P
D8 H7 3 5 6 6 8 10 12
D10 3.4 4.5 5.5 5.5 6.6 9 13.5
